THE FOLLOWING VIDEO CARDS ARE USED IN OUR MEDIASHOUT COMPUTER BUNDLES:

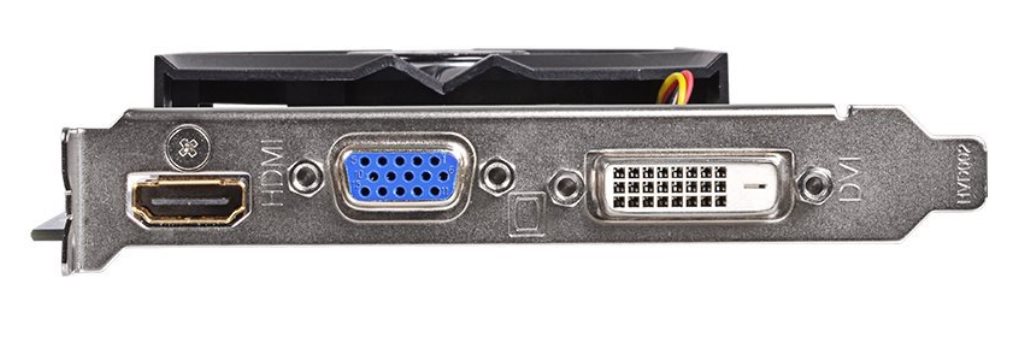

Basic and Standard: NVidia GT 730 (2 GB GDDR5 – 64 bit) [Gigabyte GV-N730D5-2GI]
- DVI-D (Adaptable to HDMI)
- HDMI (Adaptable to DVI-D)
- VGA
Notes: The DVI connector on this card CANNOT be adapted to VGA.

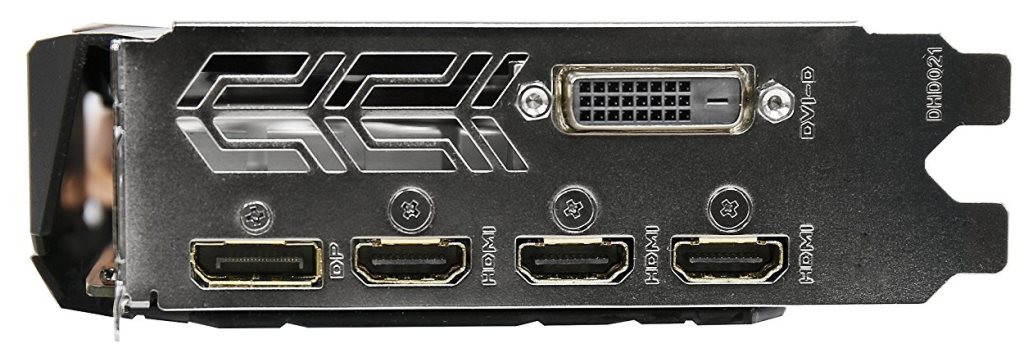

Premium and Pro: NVidia GTX 1050 (2GB GDDR5 – 128 bit) [Gigabyte GV-N1050WF2OC-2GD]
- DVI-D (Adaptable to HDMI)
- HDMI (x3) (Adaptable to DVI-D)
- DisplayPort (Adaptable to DVI, HDMI or VGA; Active or passive adapter)
Notes:
This card supports the simultaneous use of any 4 of the 5 outputs. The DVI connector on this card CANNOT be adapted to VGA.

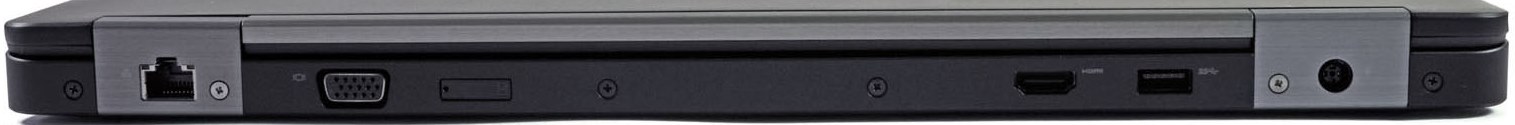

Laptop: Precision 3520 NVidia Quadro M620 (2GB GDDR5) [Previous model 3510: AMD FirePro W5130M (2GB GDDR5)]
- VGA
- HDMI (Adaptable to DVI-D)
All systems support the use of all available outputs simultaneously (except Premium, which allows any 4 of the 5 available outputs).
Typical adapters/cables:
- DVI to HDMI: Monoprice #2029 (Typically used to connect HDMI cable to DVI port)
- HDMI to DVI: Monoprice #2404 (Typically used to connect display using HDMI port)
- DisplayPort to DVI: StarTech DP2DVIS
- DisplayPort to VGA: StarTech DP2VGA2
- DisplayPort to HDMI: StarTech DP2HDS
- HDMI to VGA: StarTech HD2VGAE2 (Active converter – NOT an adapter; May not drive long cables well.)
