Using the NDI Object in MediaShout 7.4

MediaShout 7.4 introduces the NDI Object, which lets you add networked video sources to any cue. This guide walks you through setup and basic usage.

Understand NDI First

Before using the NDI Object, it's helpful to understand what NDI is and how it works. Read this overview of NDI technology to get up to speed.

The NDI Object can be used for countless applications. This guide shows you the basics—from there, you can customize it for your specific needs.

Before You Start

You'll need:

• NDI Tools (or similar NDI software) installed and running on the source computer sending the NDI signal
• Both the source computer and your MediaShout computer connected to the same network

How to Set Up the NDI Object

1. Create a New Cue

Open a new script in MediaShout 7 and add any type of cue (a Blank Cue works well for this example).

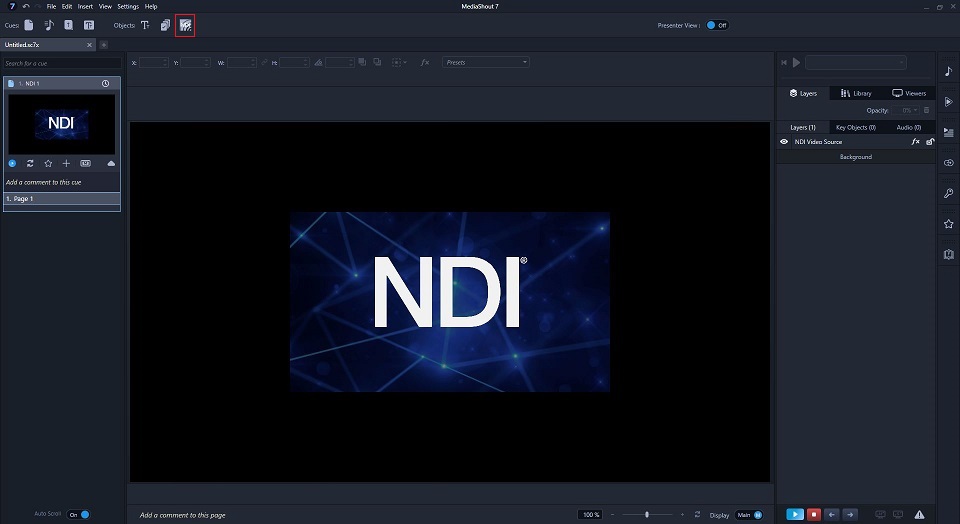

2. Insert the NDI Video Source

At the top of MediaShout, click the Insert NDI Video Source button to add the object to your cue.

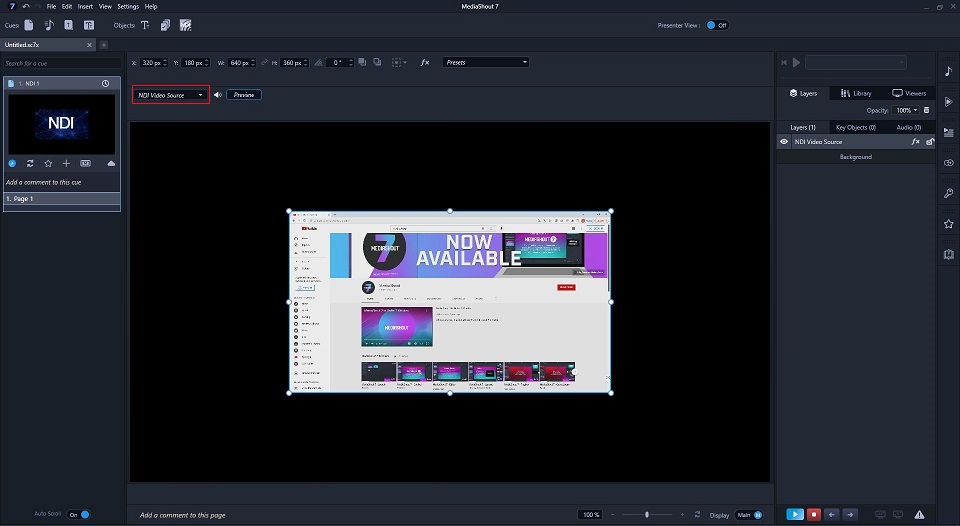

3. Select Your NDI Source

Click on the newly added NDI Object in the middle editing area to select it.

Find the NDI Video Source dropdown list and open it to see available NDI sources on your network.

Select the device that's sending the NDI signal.

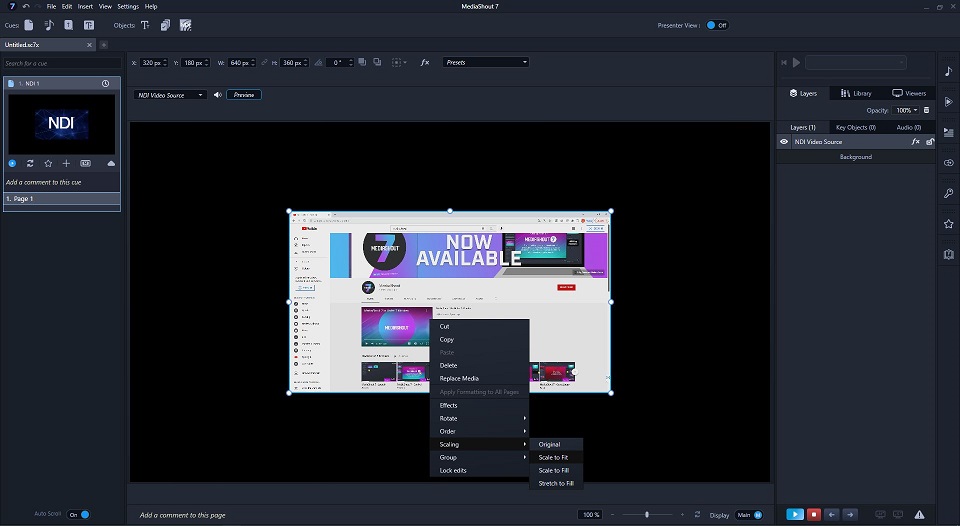

4. Scale to Fit

Right-click the NDI Object in the editing area and select Scaling → Scale to Fit.

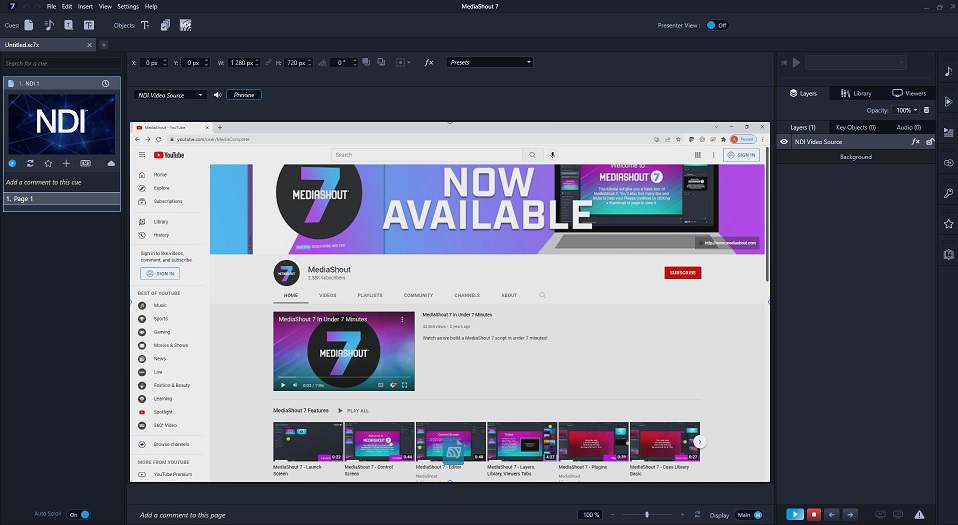

You're Ready

Your NDI Object is now configured and ready to display on your presentation screen.

From here, you can explore additional scaling options, positioning, and other NDI features to customize the setup for your specific workflow.
