How to Configure Remote Mapping in MediaShout 7.7.1

MediaShout 7 has always supported using a physical remote to control your presentation.

In previous versions, remote functionality was limited to certain preset key combinations. With MediaShout 7.7.1, we’ve added a new Remote Mapping window that allows you to fully customize which buttons on your remote control specific MediaShout commands.

This makes it easier than ever to use presentation remotes, handheld controllers, and other input devices exactly the way you want.

Available Remote Commands

You can assign remote buttons to any of the following MediaShout actions:

• Forward
  Advance to the next Cue
• Backward
  Return to the previous Cue
• Stop
  Stop playback of the current Cue
• Current
  Replay or refresh the currently active Cue
• Quick Cue 1
  Trigger Quick Cue 1
• Quick Cue 2
  Trigger Quick Cue 2
• Quick Cue 3
  Trigger Quick Cue 3

How to Set Up a Remote Controller

1. Connect Your Remote

Before opening MediaShout, make sure your physical remote or controller is properly connected to your computer.

This may be through:

• USB receiver
• Bluetooth
• Wired connection

Once connected, launch MediaShout 7.7.1.

2. Open Remote Settings

In MediaShout, navigate to:

Settings → Remote

Then click:

Add New Controller

3. Detect Your Remote

Press any key on your remote.

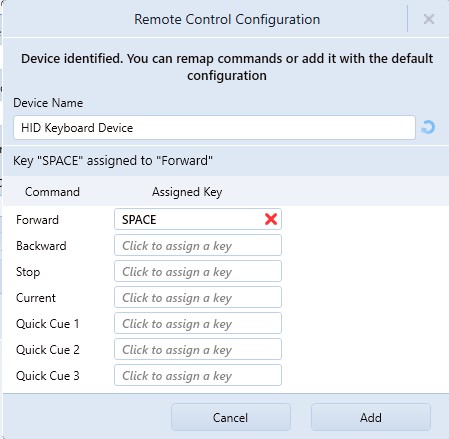

MediaShout will detect the input and open the Remote Control Configuration window.

4. Assign Commands

You’ll now see the list of available MediaShout commands.

For each command:

• Click the “Click to assign a key” field
• Press the button on your remote you want to assign

Repeat this process until all desired commands are mapped.

Important Note

Each command must use a unique key.

A single remote button cannot be assigned to more than one command.

If you attempt to use the same key twice, MediaShout will prevent the duplicate assignment.

When to Use Remote Mapping

Remote Mapping is especially useful for:

• Worship leaders advancing lyrics remotely
• Speakers controlling sermon slides themselves
• Stage presenters using handheld clickers
• Custom presentation remotes with programmable buttons
• Churches wanting simplified volunteer control options
